Speed&Comfort

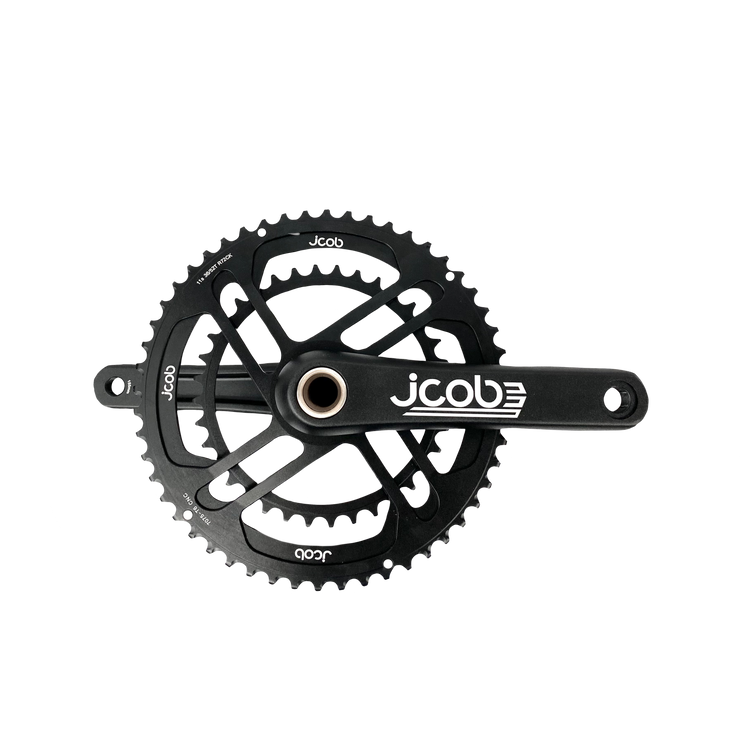

Alloy 24mm Short Crankset-150mm

Regular price $398.00 Save $-398.00
37 in stock

Our DirectMount alloy short cranksets have a 24-24mm axle that is easy to install and will work well with all 68mm road frame bottom bracket standards. Here, we have included a how-to-install guide for a 1X chainring or a Direct Mount power meter to our cranks. They are available in compact, mid-compact and standard options and come in 3 different crank arm lengths 145mm, 150mm, and 155mm.

*For power meter or 1X chain ring, click here for the installation.

 **For 12-SPEED CRANKSET SPACING, click here for the instruction


Product Specs:

WEIGHT 680 g
POWER METER COMPATIBLE YES
CRANK LENGTHS 145mm, 150mm, 155mm
CHAINRING BOLT PATTERNS 8-Bolt Direct Mount / 41mm BCD
INNER CHAINRING SIZES 34, 36, 39 (AL 7075-CNC)
OUTER CHAINRING SIZES 50, 52, 53 (AL 7075-CNC)
CRANK SPINDLE ROAD 24-24 Axle (CHROM-ALLOY 100% CNC)
DRIVETRAIN COMPATIBLE

SHIMANO 10/11, SRAM 10/11, CAMPY 10/11,

12 / with washer

MATERIAL FORGED CHROM-ALLOY
CHAINLINE 43mm TO INNER CHAINRING




Alloy 24mm Short Crankset-150mm
Alloy 24mm Short Crankset-150mm
Alloy 24mm Short Crankset-150mm
